Brand for burning out

To make a stamp, you will need a layout in vector format, a raster (ordinary) picture, a pencil sketch or a verbal description will also be suitable.

This type of stamps are used for hot and cold stamping and burning on: leather, eco-leather, wood, cheese, meat, clay, wax, sealing wax, fabric, cardboard, bread, plastic, etc.

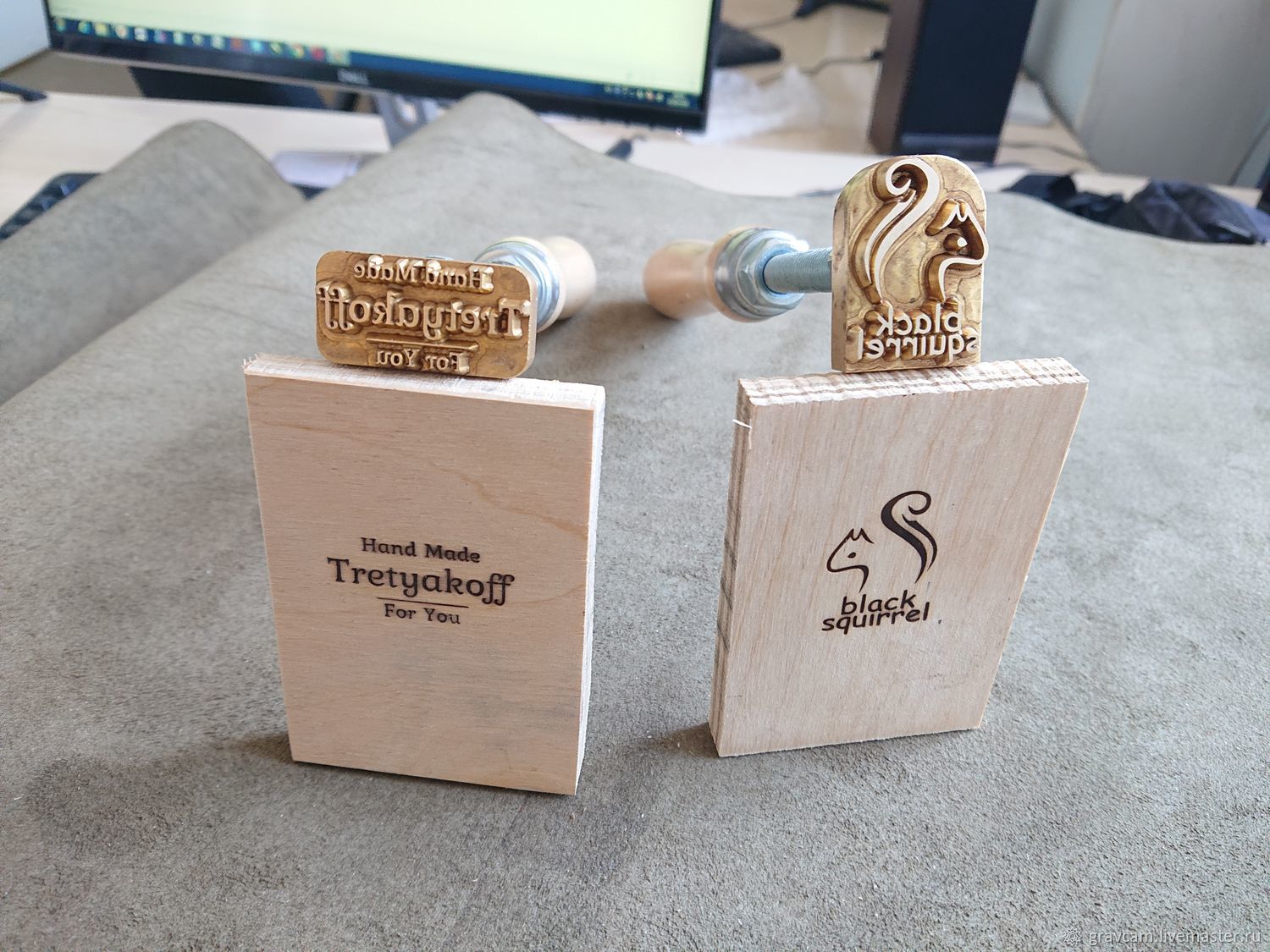

The stamp is made of brass with a thickness of 12 mm, the M10 thread is drilled and cut on the reverse side of the cliche, into which a handle (700 rubles) or a modified soldering iron (2600 rubles) is screwed.

The stamp on the handle is heated on an electric stove or an open fire. The heated stamp is pressed against the pressing surface with an average force and swung left-right, forward-backward for 4-8 seconds. Based on the result of print, adjustable pressure and temperature stamp. Under the skin, preferably on something soft, suitable natural or artificial leather, rubber, cardboard.

The stamp on the soldering iron is heated from the 220V network. Built-in soldering iron temperature control, temperature range from 80 to 300 C. The soldering iron heats up 10-15 minutes depending on the size of the cliche. After warming up presses by pushing the surface with medium pressure and pokazyvaem left-right, forward-backward for 4-8 seconds. Based on the result of print, adjustable pressure and temperature stamp.

The file for making cliches is needed in vector format (cdr, ai, eps, pdf), the image in the file must be black and white, the appearance as on the impression (do not mirror), size 1:1. All fonts must be converted to curves, and outlines must be converted to objects. If you have a bitmap image (photo), then an additional cost will be added for drawing the layout (from 300 rubles.).

THE COST OF A CLICHE for a Pen and A Soldering iron:
Cliche Square: ___The cost of cliches :
to 9 cm2%#%2500 RUB.
10 - 19 cm2____________ 2700 rub.
20 - 24 cm2_________ 3000 rub.
25 - 29 cm2_________ 3400 rub.
30 - 34 cm2_________ 3800 rub.
35 - 39 cm2_________ 4100 rub.
35 - 39 cm2_________ 4300 rub
45 - 49 cm2_________ 4550 rub

HANDLE FOR CLICHE WITH A 26 CM LONG ROD AND M10 THREAD: 700 RUB.

SOLDERING IRON FOR CLICHE 100 W WITH TEMPERATURE CONTROL: 2600 RUB.

The minimum cost of the cliche on the handle: 2500 700=3200 = 2500 rubles, then the cost increases according to the table.

The minimum cost of the cliche on the soldering iron: 2600=5100 = rubles, then the cost increases according to the table.
